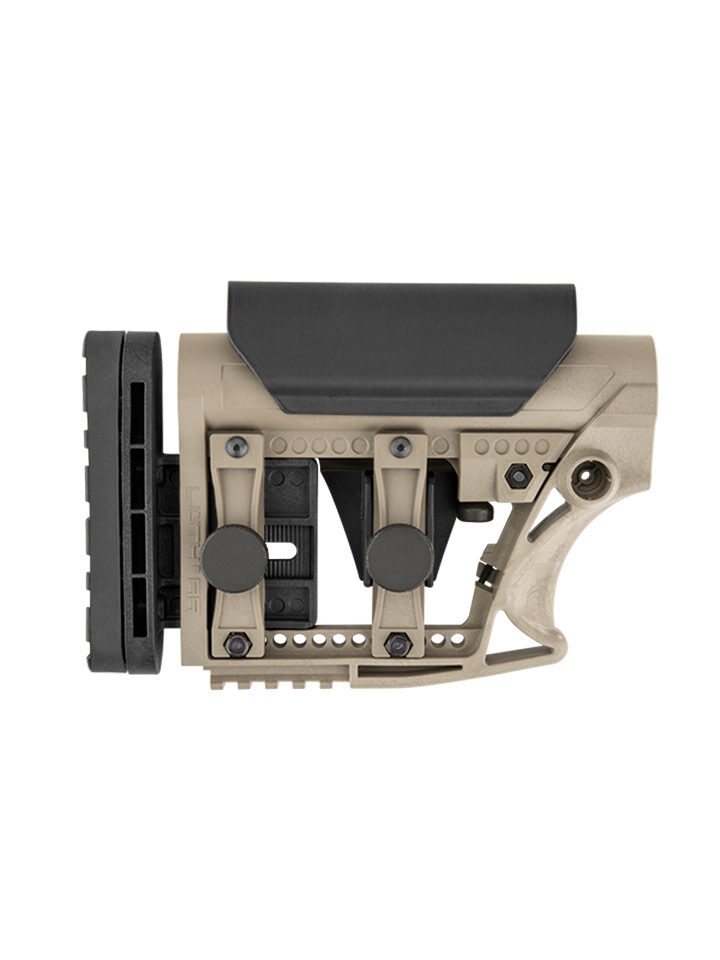

MBA-3 Carbine Buttstock
$159.95 – $165.00
The Luth-AR Modular Buttstock Assembly (MBA) for AR style carbines is designed to replace the standard buttstock on your AR. The MBA-3 Carbine Buttstock is designed to work with a 6-position Mil-Spec or Commercial buffer tube. The MBA-3 features a 3-Axis Buttplate with Length-of-Pull adjustment as well as height and lateral adjustments, and an adjustable cheek rise in a low-cost, lightweight, strong and high-quality design.
The MBA-3 requires a Carbine buffer tube, either Mil-Spec or Commercial. Please review the information provided in the Requirements tab. This stock works with both carbine Commercial and Mil-Spec tubes/assemblies.
The MBA-3 also features an anti-rattle set screw. The modular design of the MBA Buttstock allows you to configure your buttstock to your specific and personal needs. Includes a rail attachment for attaching a monopod. The MBA features multiple attachment points for a sling, including molded pockets that will accept Grovtec QD cups, sold separately. Available in Black, Flat Dark Earth, Flat Black (FDE Body w/Black Accessories) or Freedom Flag Cheek Rest (Black only).
Add a QD Cup and QD Sling Swivel to your MBA-3…
MBA-3 Carbine Buttstock
Specifications:
Buttstock Type | MBA-3 |
---|---|
Application | Carbine |
Caliber | .223, .308 |
Buttstock Weight | 19.2 oz |
Extended Length of Pull | 15 5/8" |
Collapsed Length of Pull | 11 11/16" |
Overall Extended Length | 8 3/4" |
Overall Collapsed Length | 7 11/16" |
Cheek Rise | 1" Fully Extended |
Additional Length-of-Pull | 1 1/16″ |
Available Colors | Freedom Flag, Black, Flat Black, Flat Dark Earth |
- Fully Adjustable Carbine Buttstock assembly to mount to a carbine rifle (6-positions mil-spec or commercial tube) – This is our carbine stock
- The MBA-3 Carbine Buttstock requires a Carbine buffer tube, either Mil-Spec or Commercial. Please review the information provided in the Requirements tab. This stock works with both carbine Commercial and Mil-Spec tubes/assemblies.
- Additional 1″ height on cheek rest
- 3-axis Adjustable Butt Plate Assembly extends additional 1 1/16″ length of pull and includes the following movement:
- Horizontal for linear adjustment (i.e. length of pull)
- Vertical for a perfect butt plate fit into the curvature of the shoulder.
- Lateral adjustment for a ½ inch left or right cast
- This butt plate assembly is interchangeable with the original MBA-1 Buttstock
- Includes a Picatinny Rail on the bottom rear of the Stock Body to attach your choice of many accessories.
- Designed a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstock. This also allows you to secure the stock in your favorite position.
- The MBA-3 comes with a medium soft rubber recoil pad, Duro 85.
- The Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18.5 ounces.
- Fits all .223 and .308 AR carbine style rifles
- Super Strong Glass Filled Nylon
- Easy to replace and quick to install
- Uses 4 out of the 6 positions on a mil-spec or commercial tube
- If you require a butt stock that will utilize the first 2 holes of the buffer tube to fully collapse, you can remove the cheek rest from the MBA-3, or order an MBA-4, order an MBA-4 and a 3-axis buttplate or order an MBA-5 buttstock.
Features
- Ergonomic
- Adapts To Existing Commercial and Mil-Spec Buffer Tubes
- Certain after Market Commercial Buffer Tubes that exceed 1.172″ diameter, may not fit
- The MBA-3 and MBA-4 are available in Black or Flat Dark Earth
- The vertical struts for the MBA-3 are fixed, therefore the cheek piece is not reversible like the MBA-1 however the cheek piece itself is designed with a cheek pad for left-handed use
- Caution: the MBA-3 and MBA-4 Carbine buttstocks are not designed to be used with Large Bore Calibers such as .338 Lapua or .50 BMG applications. See our MBA-1 and MBA-2 Rifle buttstocks as alternatives.
- The MBA-3 Carbine buttstock is NOT interchangeable with A2 standard buffer tube. You will need to purchase a MBA-1 or MBA-2 Rifle buttstock to fit A2 tubes
Compatible Buffer Assemblies:
- .223 Mil-Spec Carbine Buffer Assembly
- .223 Commercial Carbine Buffer Assembly
- .308 Mil-Spec Carbine Buffer Assembly
- .308 Commercial Carbine Buffer Assembly
Additional Information
The MBA-3 does not include the following accessories, they can be purchased on our website separately in the Accessories section:
- Sling Swivels (Side or Rear) Sold Separately, see below. Also see Tech-Tip Videos
- Carbine Buffer tube
- Carbine Buffer Body
- Carbine Buffer Spring
- Latch Plate
- Lock Ring
Installation Notes:
- When used with the smaller diameter Mil-Spec tube you can adjust the set screw located on the left hand side using the included 3/32” Allen wrench. Turn clockwise to slowly tighten the set screw until it contacts the buffer tube. The Anti-rattle set screw is NOT designed to lock the position of the stock. Over tightening may damage the butt stock.
-
When sliding the buttstock onto a 6-position buffer tube, the lock pin has a notch in the head of the lock pin that must line up with a tab on the stock body. Once the slot and tab are lined up, the pin can be fully retracted allowing the buttstock to slide onto the tube. The MBA-3 should slide easily without resistance. If there is any resistance, the lock pin is not fully retracted.
Parts Schematic
The MBA-3, MBA-4 and MBA-5 Buttstocks require the use of a Carbine buffer tube. Use the diagram below to determine if you currently have an Carbine buffer tube. If you have an A2 Rifle buffer tube you may want to look at the MBA-1 or MBA-2 buttstock. If you are ordering an MBA buttstock kit, the proper buffer tube is included.
Further you will want to determine whether your buffer tube is a Mil-Spec or Commercial buffer tube.
Either one will work with your MBA Carbine buttstock, however Commercial buffer tubes are typically larger in diameter than Mil-Spec buffer tubes. The MBA Carbine Buttstocks will have more free-play on the Mil-Spec tubes than Commercial tubes. There is an anti-rattle set screw designed to tighten up the buttstock when used with a Mil-Spec buffer tube. The anti-rattle set screw should only be snugged up to remove the free-play, over tightening will damage the buttstock.
The differences between an A2 Rifle Buffer Tube and a Carbine Buffer Tube.
All MBA Buttstocks are Sling Swivel Ready.
This means that the buttstocks have molded pockets that accept Grovtec Sling Swivel Cups for use with Quick Detach swivels. The Sling Swivels and cups are NOT included with the buttstocks and must be ordered separately. This is to keep the cost of the MBA buttstocks down. Not every customer needs sling swivels and including them would raise the price of the buttstocks. The sling swivels are available separately. See the videos below for installation instructions using the install kit, or using a 1/4″ Allen wrench.
