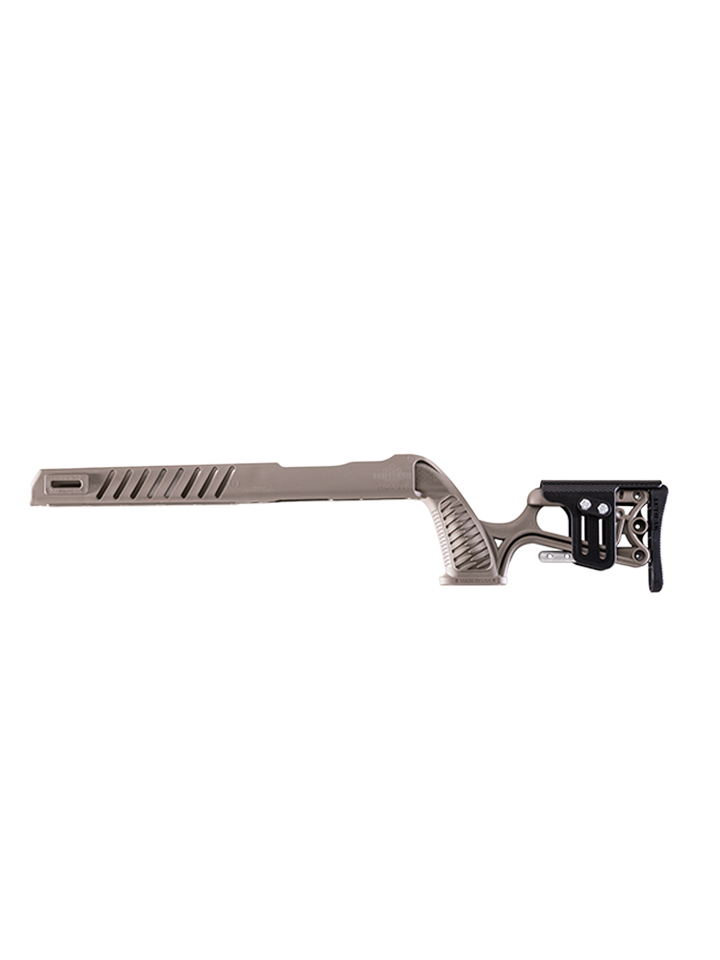

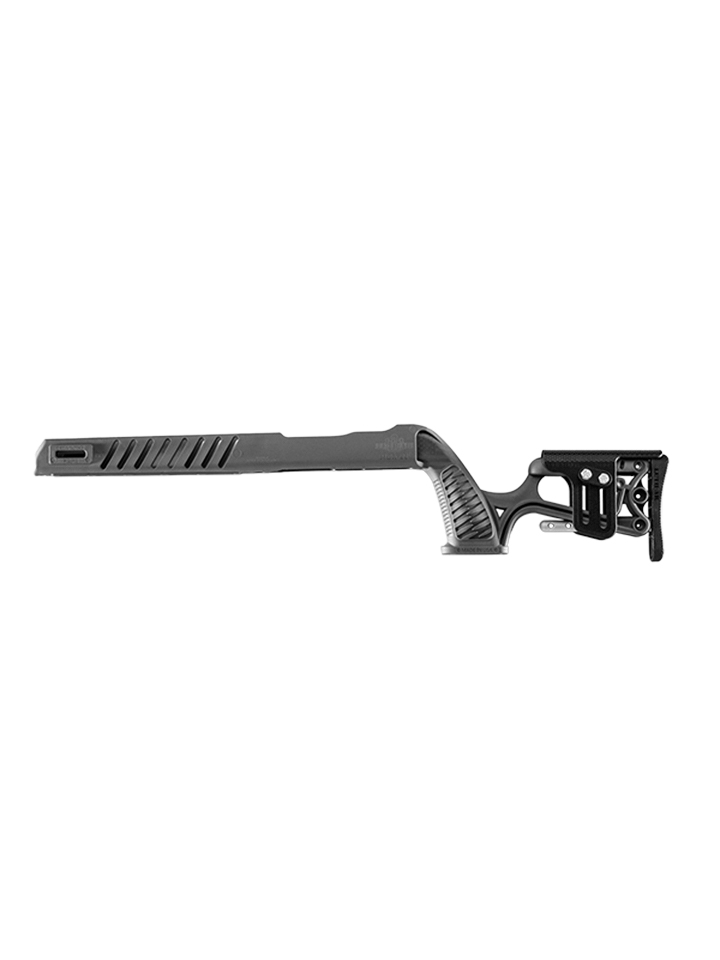

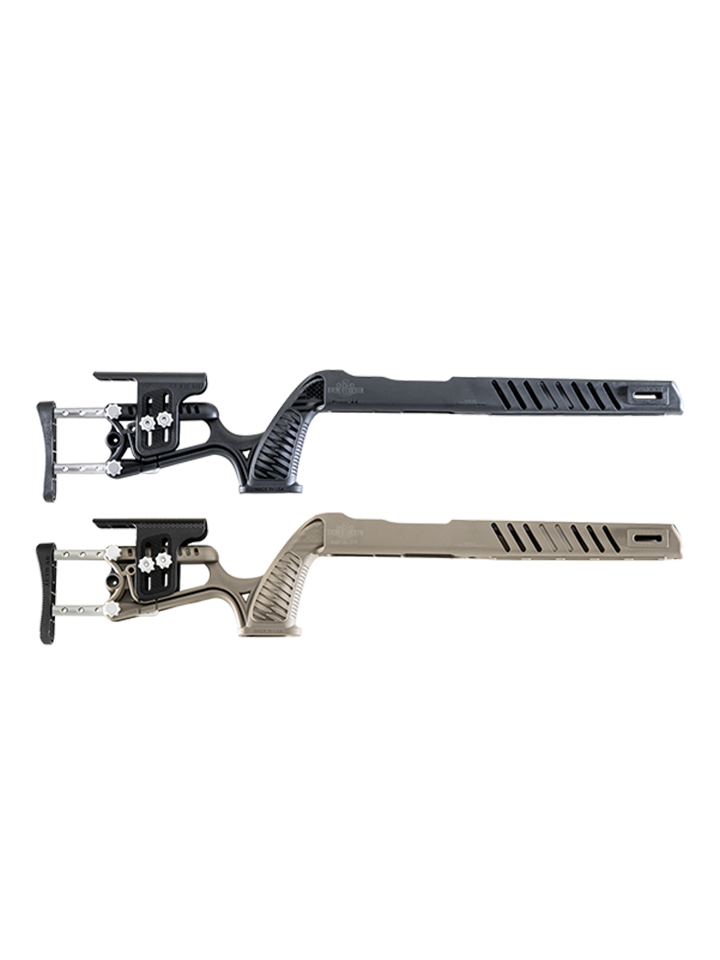

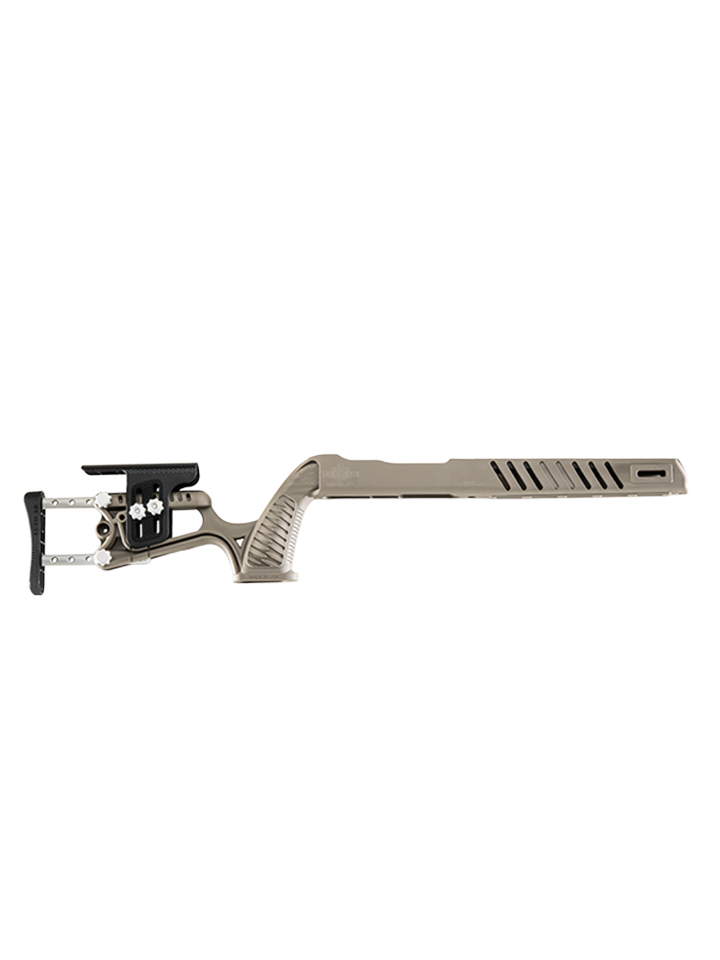

MCA™-22 Modular Chassis Assembly

$189.95

MCA™-22

Designed for Ruger® 10/22® and similar actions and barrels.

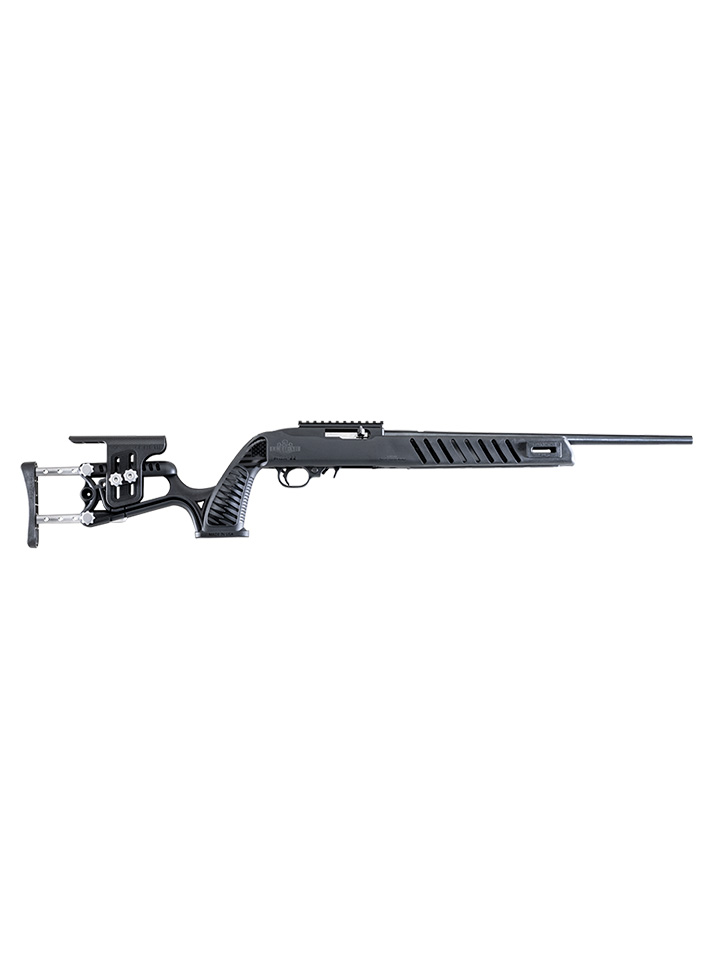

The MCA™-22 allows users the best possible fit for recreational, hunting, and competition shooting. Easily install your Ruger® 10/22® or similar receiver, trigger group and barrel into the MCA™-22. Accepts standard or bull barrels.
  • Easy to install, light weight chassis and cost effective.
  •  Constructed with high-strength glass filled nylon, 6061 aluminum and steel.
  •  Designed for comfort and ergonomic control for wide range of body types.
  •  100% ambidextrous.
  •  Ambidextrous goose-neck style pistol grip with palm swell.
  •  Click-adjustable cheek piece.
  •  Aggressive grip panel and front grip strap texturing.

Free shipping on orders over $175.00!

  • Check Mark Made in America
  • Check Mark Secure Checkout
SECURE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
SKU: MCA-22 Categories: ,

Description

MCA™-22

Designed for Ruger® 10/22® and similar actions and barrels.

The MCA™-22 allows users the best possible fit for recreational, hunting, and competition shooting. Easily install your Ruger® 10/22® or similar receiver, trigger group and barrel into the MCA™-22. Accepts standard or bull barrels.
  • Easy to install, light weight chassis and cost effective.
  • Constructed with high-strength glass filled nylon, 6061 aluminum and steel.
  • Designed for comfort and ergonomic control for wide range of body types.
  • 100% ambidextrous.
  • Ambidextrous goose-neck style pistol grip with palm swell.
  • Click-adjustable cheek piece.
  • Aggressive grip panel and front grip strap texturing.

* Note: Chassis only, user must provide action and barrel.

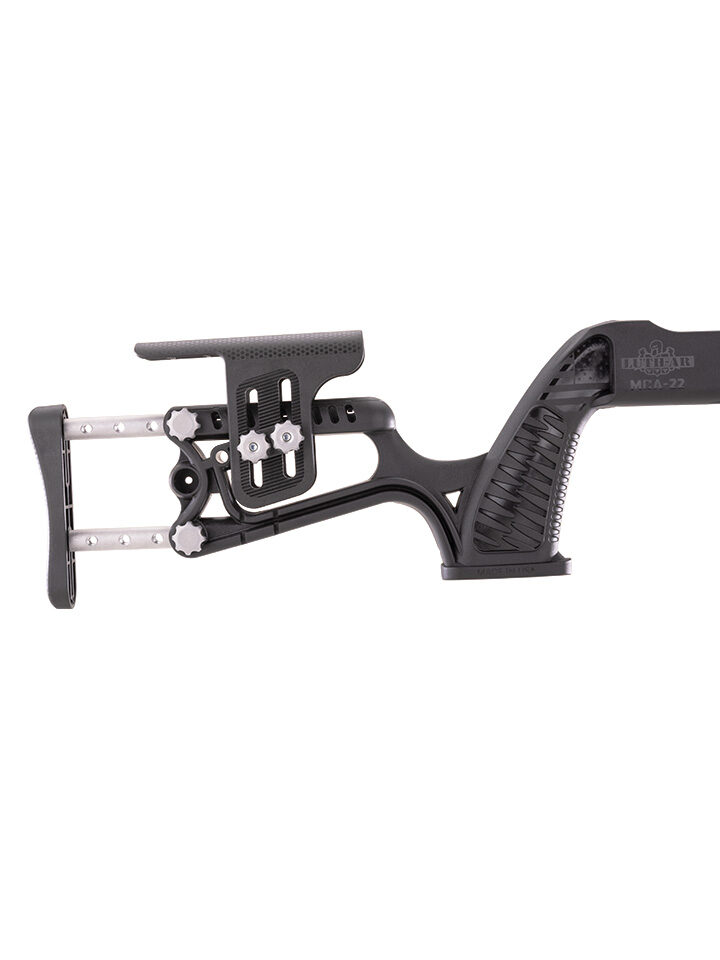

Butt Stock features:

  • Ambidextrous goose-neck style pistol grip with palm swell.
  • Click-adjustable cheek piece / front and back .750” / up and down 2” (+1”/-1” from bore center).
  • Aggressive grip panel and front grip strap texturing.

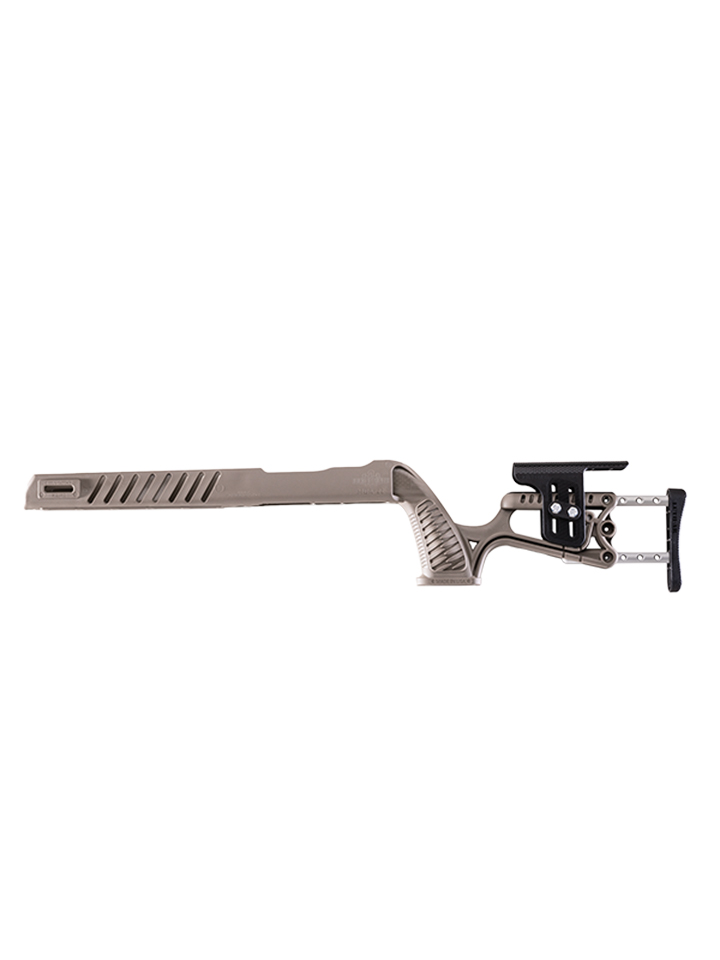

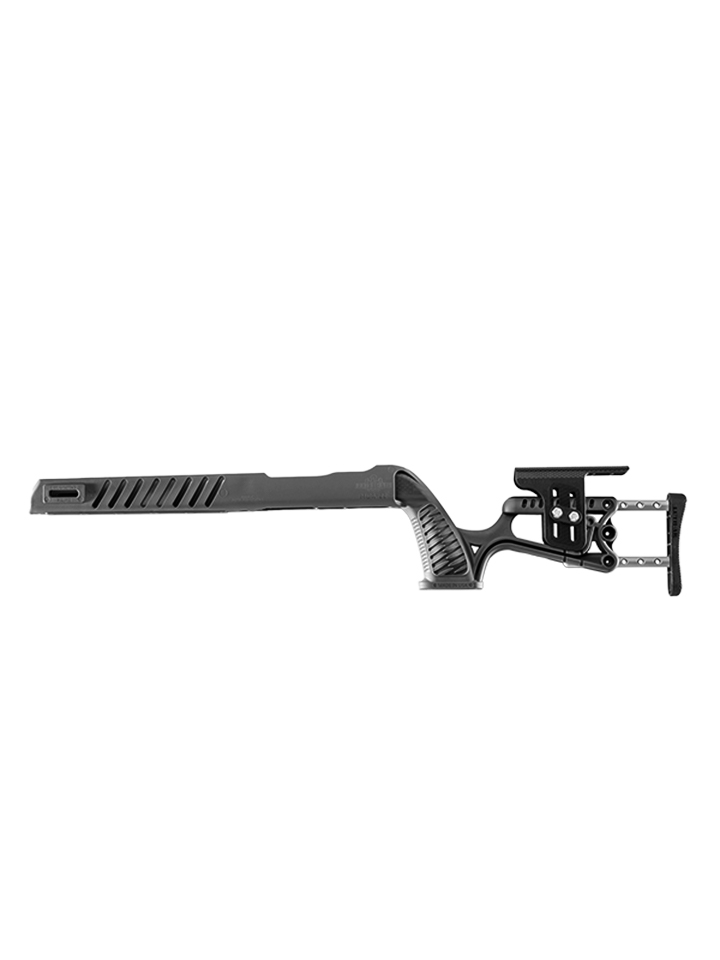

  • Length of pull adjustable from 11.25” to 15.75” in .75” increments.
  • 1” Vertical butt pad adjustment.
  • Two locations to accept GrovTec Threaded QD Cup inserts.

Foregrip features:

  •  5-slot M-LOK® compatible foregrip bottom with 1 M-LOK® slot on both sides of foregrip.
  •  Front bottom foregrip pre-drilled dome sling stud locator hole (Must Tap 10-32).
  •  Removable taper barrel foregrip insert to accommodate bull barrels.

Specifications:

  • Weight: 2.09 lbs
  • Overall Length: 26.5″
    • Collapsed: 27″
    • Full Extension: 30.75″
  • Width: 1.790″
  • Additional LOP
    • Collapsed: 11.25″
    • Extended: 15.75″
    • Increments: .75″
  • Cheek Rise
    • Increments: .090″
    • Adjustable: 2” (+1”/-1” from bore center)

SKU: MCA-22

Additional information

Application

Ruger® 10/22® Style Actions

Caliber

.22LR

Overall Length

26.5"

Width

1.790"

Cheek Rise

Adjustable: 2” (+1”/-1” from bore center) .90" Increments

Collapsed Length-of-Pull

11.5"

Extended Length-of-Pull

15.75"

Slot Style

M-LOK®

Weight lbs

2.09

Material

33% Glass Filled Nylon
