Palm Handguard® 15″ MLOK™, KeyMod or Smooth

0 Reviews
0 out of 5

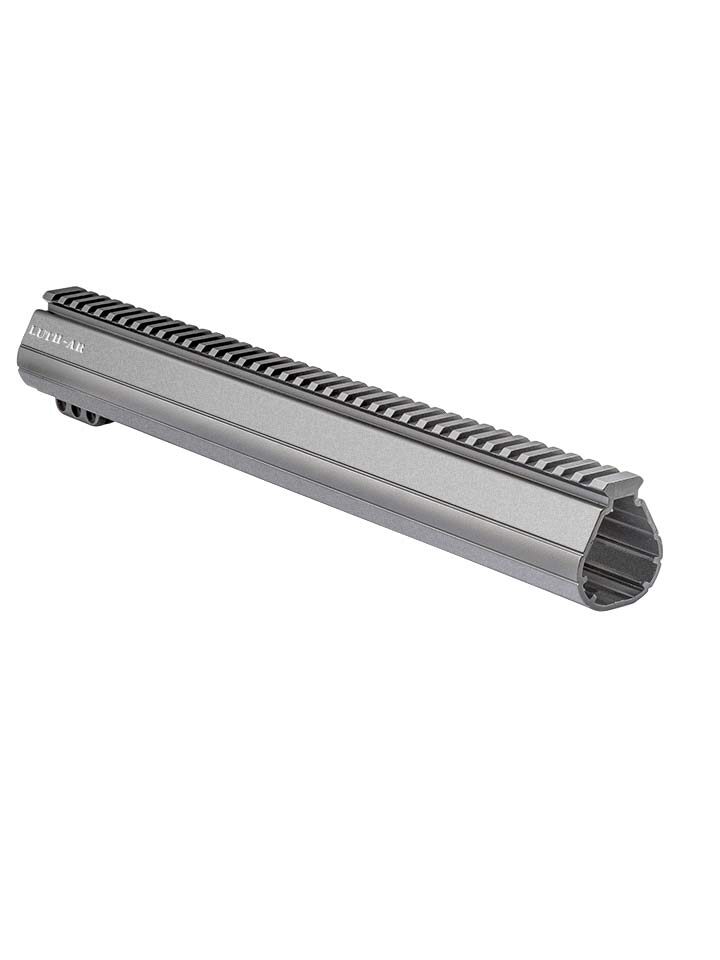

The Palm Handguard®, 15″ free float tube features a triangular profile that conforms to the palm of your hand giving you a secure and comfortable grip on your AR15. The Slotted versions of the Palm Handguard® provides a Picatinny top rail and KeyMod or MLOK™ slots along both upper sides, as well as a row of KeyMod or MLOK™ slots along the bottom to accommodate accessories such as a bipod. The lower sides are adorned with the Luth-AR “Double L”, and Cartridge lightning/cooling cuts to further reduce weight and provide heat dissipation with a distinctive good look. The Smooth version of the Palm Handguard® provides a Picatinny top rail for attaching scopes and accessories, (Note: the Smooth version does not have slots on the bottom). Includes heat treated alloy steel barrel nut with a manganese phosphate finish.

Clear

From: $59.95

Parts Schematic

The Palm Handguard®, 15″ free float tube features a triangular profile that conforms to the palm of your hand giving you a secure and comfortable grip on your AR15 or Pistol Caliber Carbine. The Slotted version of the Palm Handguard® provides a Picatinny top rail and KeyMod or MLOK™ slots along both upper sides, as well as a row of KeyMod or MLOK™ slots along the bottom to accommodate accessories such as a bipod. The lower sides are adorned with the Luth-AR “Double L”, and Cartridge lightning/cooling cuts to further reduce weight and provide heat dissipation with a distinctive good look. The Smooth version of the Palm Handguard® provides a Picatinny top rail for attaching scopes and accessories, (Note: the Smooth version does not have slots on the bottom).

Available in either MLOK™, KeyMod or Smooth

The Palm Handguard® is made from 6061-T6 Aluminum extrusion that is hard anodized black. The Palm Handguard® includes a Palm Handguard® barrel nut made from heat treated alloy steel with a manganese phosphate finish. Weighs 13.8 oz, total weight with barrel nut 1.05 lbs.

FEATURES:

  •  Fits AR15 Uppers
  • 15″ Length
  • Picatinny flat-top rail
  •  KeyMod or MLOK™ slots or Smooth
  •  Made from 6061-T6 Aluminum extrusion
  •  Hard coat anodized black
  •  Luth-AR “Double-L” and Cartridge slots lightening cuts
  •  Includes heat treated alloy steel barrel nut with a manganese phosphate finish
  • Weighs 13.8 oz
  • Total weight with barrel nut 1.05 lbs

*Not available for AR10, .308



KeyMod SKU: HG-V-15K

MLOK™ SKU: HG-V-15M

Smooth SKU: HG-S-15

Application

AR15, M-16, Rifle, Carbine, Pistol Caliber Carbine

Overall Length

15"

Slot Style

KeyMod, MLOK™, Smooth

Available Colors

Black

Material

6061-T6 Aluminum Extrusion

Weight with barrel nut

1.05 Lbs

Caliber

.223 Rem, .556 mm, 9mm

Width

1.75"

Inside Width

1.375"

Height

2.00"

Inside Height

1.625"

Luth-AR Palm Handguard® Installation

  1. Insert the barrel into the upper receiver.
  2. Apply a light amount of moly grease to the threads of the upper receiver.
  3. Slide the Palm Handguard®  barrel nut over the barrel until it contacts the upper receiver threads.
  4. Hand tighten the barrel nut until snug against the upper receiver.
  5. Using an 10″ adjustable wrench or a 1-3/16″ open end wrench, tighten the barrel nut to the upper receiver to approximately 35 foot pounds of torque.
  6. Slide the Palm Handguard® over the barrel nut. Ensure the Picatinny rail is aligned with the Picatinny rail on the upper receiver and fully seated.
  7. Apply a small amount of thread lock to the four 10/32 socket head cap screws on the bottom rib of the Palm Handguard®.
  8. Tighten the cap screws by alternately tightening each cap screw a small amount to distribute equal pressure until the Palm Handguard® is completely and equally tight. The cap screws should be torqued to approximately 35-40 inch pounds.
  9. There are two retaining machine screws on the lower portion of the handguard that screw into the barrel-nut groove (just above the 4 rib screws). Apply a small amount of thread lock to the two screws and tighten.This will assist in retaining the handguard from slipping forward during use.
