MBA-5 Buttstock

$49.95

MBA-5 Buttstock

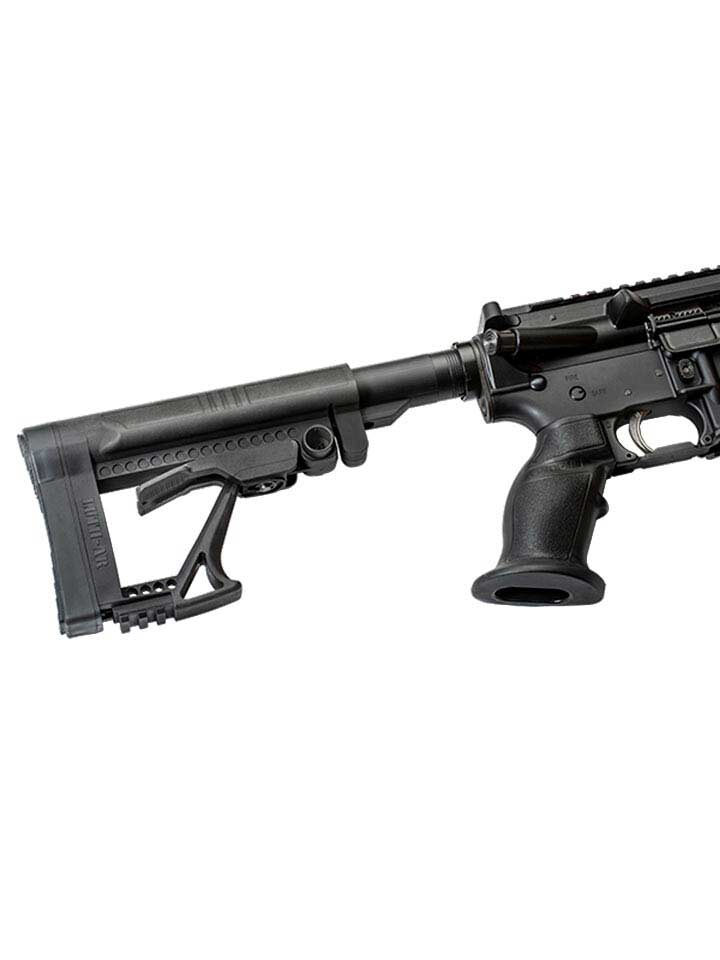

The Luth-AR MBA-5 Buttstock is the latest in the MBA Series. Designed as an affordable, lightweight, adjustable carbine buttstock with a paddle-style adjustment lever allowing rapid positioning. The wide flared cheek rest provides a comfortable cheek weld and the integrated Picatinny rail allows for attaching a mono-pod or other accessories and the Anti-rattle set screw allows for adjustment when used with a Mil-spec buffer tube.

The MBA-5 requires a Carbine buffer tube, either Mil-Spec or Commercial. Please review the information provided in the Requirements tab below.

The MBA-5 is Grovtec™ Quick Detach sling cup ready*. Paired with our Chubby Grip® and Palm Handguard® the New MBA-5 is just the right choice for your AR.

Note: The MBA-5 is designed with a non-adjustable, flared cheek rest and is not intended to provide vertical adjustment. Order an MBA-3 or add a Cheek Rest Assembly to your MBA-4 for full cheek rest adjust ability on a Carbine butt stock.

Clear

Free shipping on orders over $175.00!

  • Check Mark Made in America
  • Check Mark Secure Checkout
SECURE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card

Description

MBA-5 Buttstock

The Luth-AR MBA-5 Buttstock is the latest in the MBA Series. Designed as an affordable, lightweight, adjustable carbine buttstock with a paddle-style adjustment lever allowing rapid positioning. The wide flared cheek rest provides a comfortable cheek weld and the integrated Picatinny rail allows for attaching a mono-pod or other accessories, and the Anti-rattle set screw allows for adjustment when used with a Mil-spec buffer tube.

The MBA-5 requires a Carbine buffer tube, either Mil-Spec or Commercial. Please review the information provided in the Requirements tab.

The MBA-5 is Grovtec™ Quick Detach sling cup ready*. Paired with our Chubby Grip® and Palm Handguard® the New MBA-5 is just the right choice for your AR.

Note: The MBA-5 is designed with a non-adjustable, flared cheek rest and is not intended to provide vertical adjustment. Order an MBA-3 or add a Cheek Rest Assembly to your MBA-4 for full cheek rest adjustability on a Carbine buttstock.

MBA-5 features:

  • Lightweight Carbine Buttstock
  • MBA Ergonomic Styling
  • Paddle Adjustment Lever for Rapid Positioning
  • Flared Cheek Rest
  • Anti-rattle set screw*
  • Integrated Picatinny Rail for Mono-pod attachment
  • Available in Black or Flat Dark Earth
  • Quick Release Cup Pockets, both sides**
  • Rubber Buttpad
  • High-Strength Glass-filled Nylon
  • Length-of-pull: 11.5” collapsed, 14.5” extended
  • Weight: 8.95 oz

* When used with the smaller diameter Mil-Spec tube you can adjust the set screw located on the left hand side using a 3/32” Allen wrench. Turn clockwise to slowly tighten the set screw until it contacts the buffer tube. The Anti-rattle set screw is NOT designed to lock the position of the stock. Over tightening may damage the butt stock.

** The MBA-5 is Grovtec™ Quick Detach sling cup ready and requires the separate purchase of Grovetec cups and sling swivel.

SKU: MBA-5B — Black

SKU: MBA-5F — FDE

Additional information

Buttstock Type

MBA-5

Available Colors

Black, Flat Dark Earth

Caliber

.308, 9mm, .223 / 5.56

Reviews

There are no reviews yet.

Be the first to review “MBA-5 Buttstock”
The MBA-3, MBA-4 and MBA-5 Buttstocks require the use of a Carbine buffer tube. Use the diagram below to determine if you currently have an Carbine buffer tube. If you have an A2 Rifle buffer tube you may want to look at the MBA-1 or MBA-2 buttstock. If you are ordering an MBA buttstock kit, the proper buffer tube is included.

Further you will want to determine whether your buffer tube is a Mil-Spec or Commercial buffer tube.

Either one will work with your MBA Carbine buttstock, however Commercial buffer tubes are typically larger in diameter than Mil-Spec buffer tubes. The MBA Carbine Buttstocks will have more free-play on the Mil-Spec tubes than Commercial tubes. There is an anti-rattle set screw designed to tighten up the buttstock when used with a Mil-Spec buffer tube. The anti-rattle set screw should only be snugged up to remove the free-play, over tightening will damage the buttstock.

The differences between an A2 Rifle Buffer Tube and a Carbine Buffer Tube.

All MBA Buttstocks are Sling Swivel Ready.

This means that the buttstocks have molded pockets that accept Grovtec Sling Swivel Cups for use with Quick Detach swivels. The Sling Swivels and cups are NOT included with the buttstocks and must be ordered separately. This is to keep the cost of the MBA buttstocks down. Not every customer needs sling swivels and including them would raise the price of the buttstocks. The sling swivels are available separately. See the videos below for installation instructions using the install kit, or using a 1/4″ Allen wrench.
